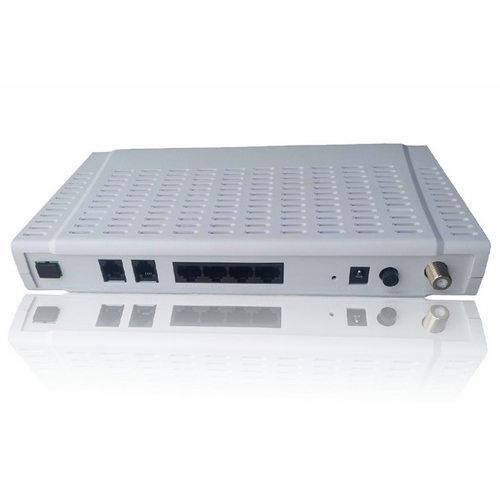

Product Name: 4FE+2POTS+CATV ONU
P/N: WONU-XXXX-007
Download Datasheet

1Special Features

1.1Data service function

=       Full speed without blocking exchange.

=       8K MAC address table.

=       Support Full Range VLAN ID.

=       Support QinQ VLAN、1:1VLAN、VLAN Trunk etc.

=       support portmonitor, port mirror ,port speed limit ,port SLA etc.

=       QoS based on interface,IEEE802.1p,IPV4(ToS),Diff-Serv,IPV6,802.1Q VLANID,destination MAC or source MAC.

=       The Ethernet interfaces according to the specifications of the IEEE802.3.

=       128-bit AES encryption algorithm.

=       According to 802.1x remote management and user authentication.

1.2Telephone service function

=       Support SIP protocol,H.248 protocol,H.323 optional.

=       Support ITU-T G.711、G.723.1、G.729 compression algorithm

=       Echo cancellation meets ITU-T G.168-2002. echo cancellation for thelongest is 128ms.

=       Support OSPF,T38.

=   Support RFC2833 and RFC2833 redundant,distinctive ringing ,MD5 certificate,call forwarding,call waiting,telephone hotline,alarm clock,abbreviated dialing and etc.

=       Support two POTS interface three-way calling,three-way calling supportlocal mixing.

=       Support POTS GR909 line test function.

=       Support dynamic PPPoE,dhcp and static IP.

=       Support CTC2.1 standard

=       7×24h call lose≤0.01%

2Product specifications

Item

Parameter

specification

Optical interface specification

Transmission rate

=    Downstream1.25 Gbps

=    Upstream1.25 Gbps

Optical specifications

=    Downstream

     Wavelength1490nm+/-20nm

     Minimum receiver sensitivity-27dBm

     Receive saturation power-3dBm

=    Upstream

     Wavelength1310nm+/-50nm

     Minimum output optical power0dBm

Number of users can be connected

Up to 32 users within 20km.

E8067U connector

SC/APC

Optical physical conditions

=    IEEE802.3-2005

=    1000 BASE-PX20+

Optical fiber

G.652 single-mode fiber

Ethernet interface specification

standard

=    IEEE802.3

=    IEEE802.3au

=    IEEE802.3x

Port number

4 FE

Connector type

RJ-45

impedance

100 Ohm

LAN

=    IEEE 802.3

=    10/100BASE-T,

=    Automated negotiation

=    Full duplex/Half duplex

=    Support RJ-45 MDI/MDIX

VLAN

  IEEE802.1q

Support the connection distance

  Up to 100 meters

CATV interface specification

Receiving wavelength range

  1550±10nm

light reflection loss

  >45dB

input power range

  +2dBm~-8dBm

RFinterface specification

Operation bandwidth

  45~1000MHz

RF output level

  80dBuV

RF dB

  ±1.5 dB

RF output reflection loss

  ≥14dB

E8067U Power consumption

  ≤13W

Adapter input

  100V~240V AC,50 Hz/60Hz

E8067U adapt output

  12V±10%,2A

EMC and safety

EMC

  EN55022 B(CISPR 22B)

ESD defend and preserve

  IEC 61000-4-2 GR-1089-CORE

Laser eye safety

l         FDA 21CFR 1040.10  1040.11

l         EN(IEC) 60825-1

l         EN(IEC) 60825-2

Environment-protection standard

  RoHS

Environmental requirements

Running temperature

  -10ºC~55ºC

Storage temperature

  -30ºC~60ºC

Operating humidity

  10%~90% ,on-condensing

Storage humidity

  5%~95% ,Non-condensing

Physical specifications

Size

  L x W x H:245 mm x 150 mm x 37mm

Weight

  <500g
